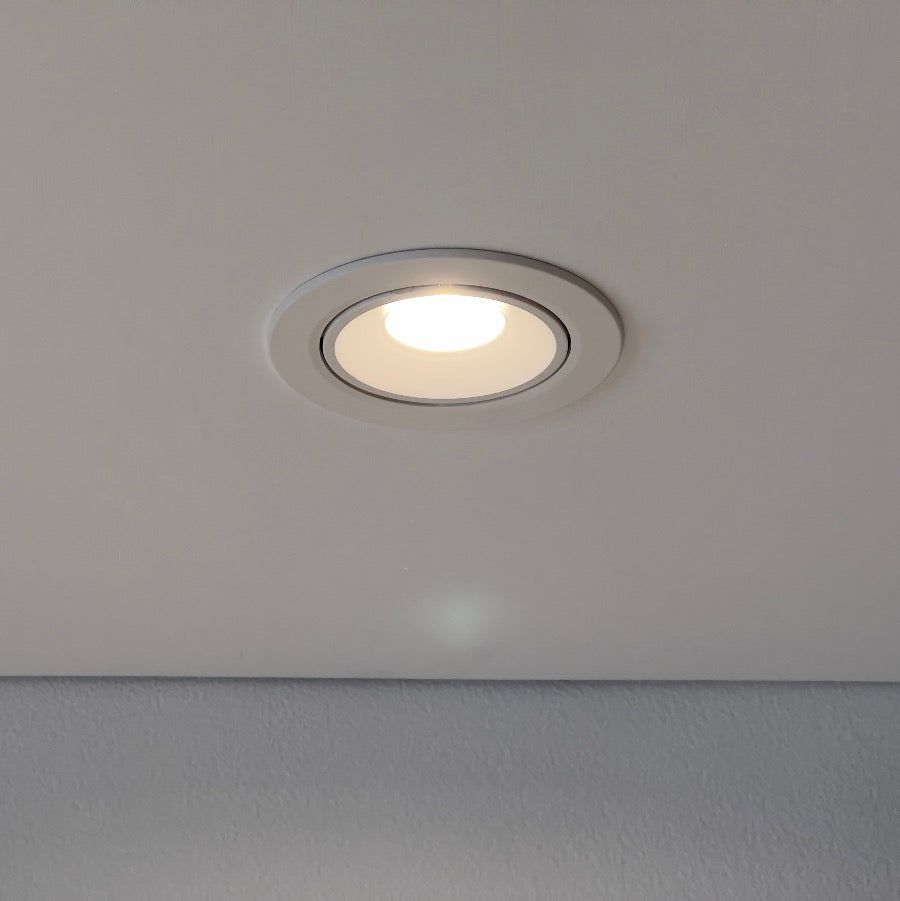

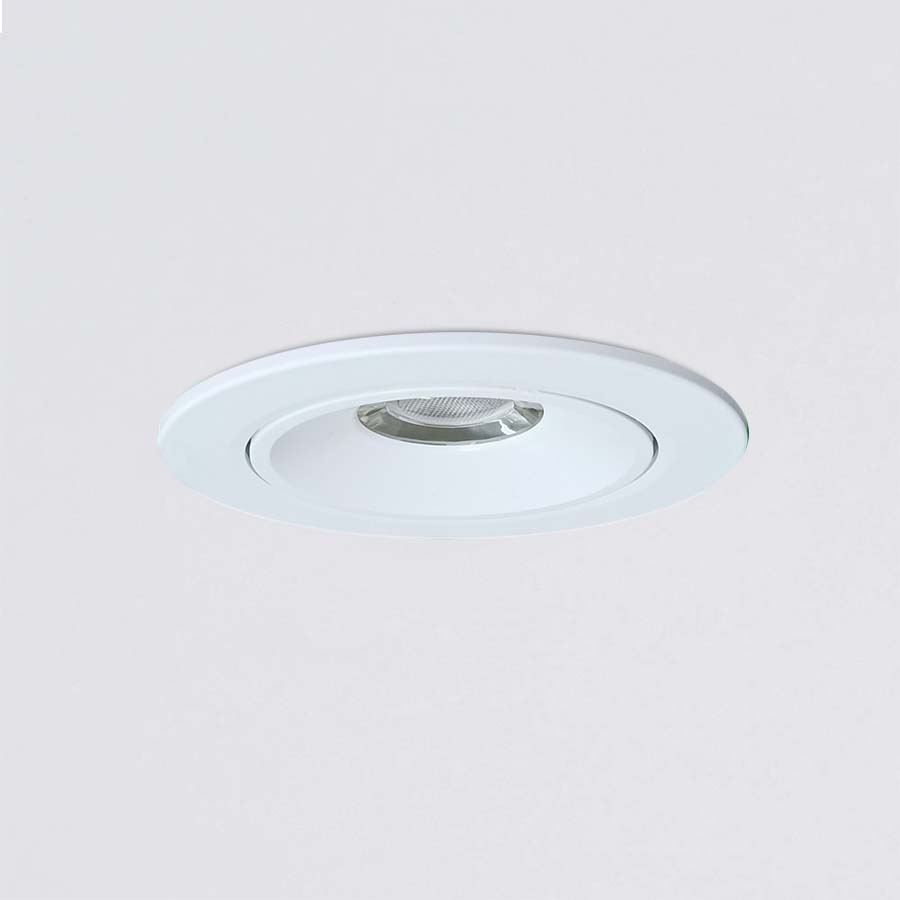

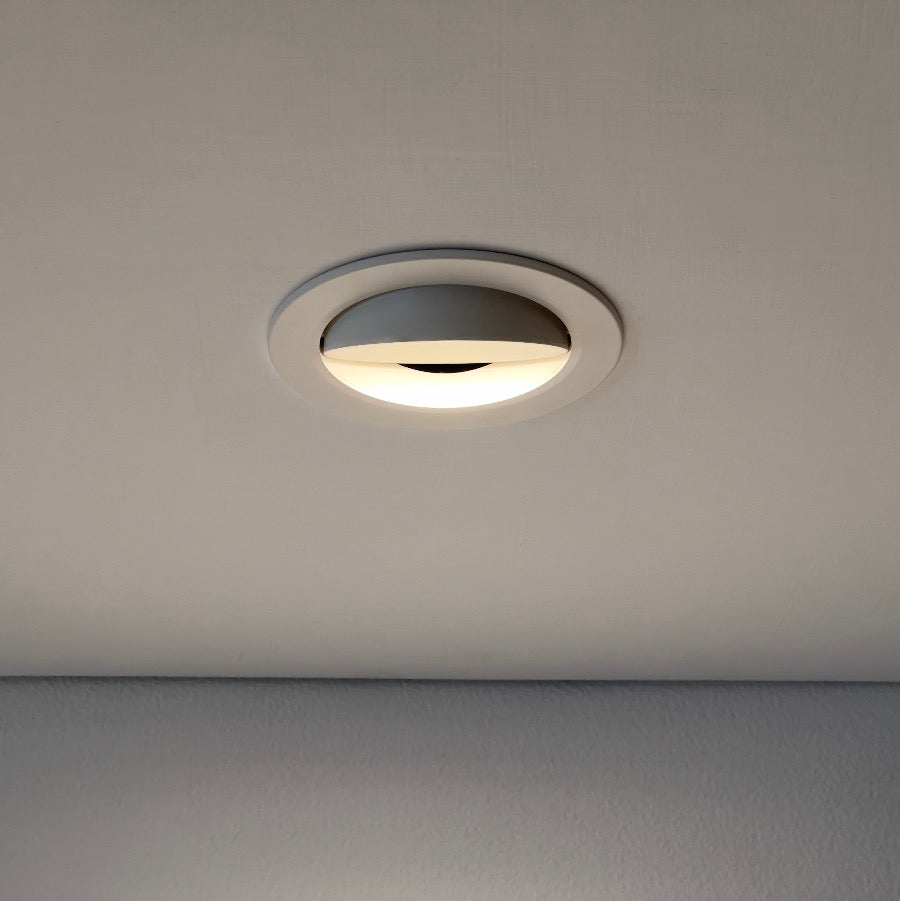

Ecolite 102 V2 Ultra Low Profile LED Downlight
✔ 1-2 business day dispatch.
The perfect 32.7mm low profile design with tri-colour switch on the back for commercial or residential applications. Focused towards a comfortable, efficient and adjustable lighting design.
Suited for tight ceiling cavities, sloped or pitched ceilings requiring gimbal design and low power consumption. A far better option compared to traditional flush mount LEDs which are common used within the home building industry
Built with visual comfort in mind, the new Ecolite 102 features a low-glare recessed LED, effectively hiding the light source from the viewer’s direct line of sight. Its low glare design is complimented by its 60° beam angle, ensuring it seamlessly integrates within your ceiling.
Working well in general area lighting, artwork or architectural feature highlighting.
| SPECIFICATIONS | |
| Wattage | 8W |
| Dimmable | Yes (refer to driver specs below) |
| Beam angle |
60° |
| CutoutØ | 90mm |

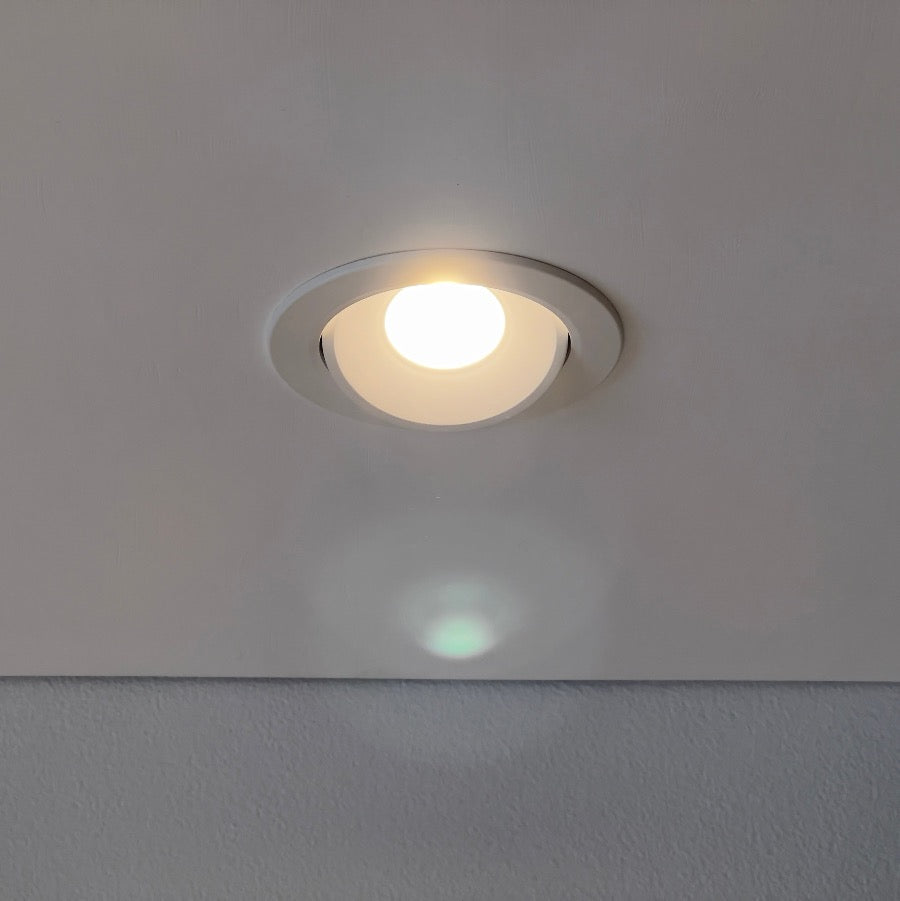

| Gimbal | 20° adjustment |
| Power factor | >90 |
| IP factor | IP20 |
| IC rating | IC-4 |
| Input Voltage | 240V 50-60Hz |
| Warranty | 3 Year |
| Dimensions | D111mm x H32.7mm Cable (300mm light to driver + 600mm driver to plug) |
| LED INFORMATION | |
| LED chip type | COB |
| Lumens @ 3000K |
640lm (4K=720lm 57K=720lm) |
| Efficacy | 80 lm/W*approx |
| CCT |
3000K / 4000K / 5700K |
| CRI rating |
80 |
| Lifetime | 30,000 Hours |
| MATERIALS & FINISHES | |
| Colour options | White |
| Material | Housing & Heatsink Plastic + Aluminium Diffuser clear polycarbonate |
| DRIVER INFORMATION | |
| Driver Spec |
Constant Current: Dimmable with trailing edge dimmer. Suitable for 2-way switching Suitable for use with PIR & Microwave sensors |
| Compatible Dimmers |
Clipsal: 32E450TM, 32ELEDM HPM: CAT400T Diginet: MEDM, MMDM/RT 1-10 units |
| Driver type | External |
| Lead type | flex with plug |
