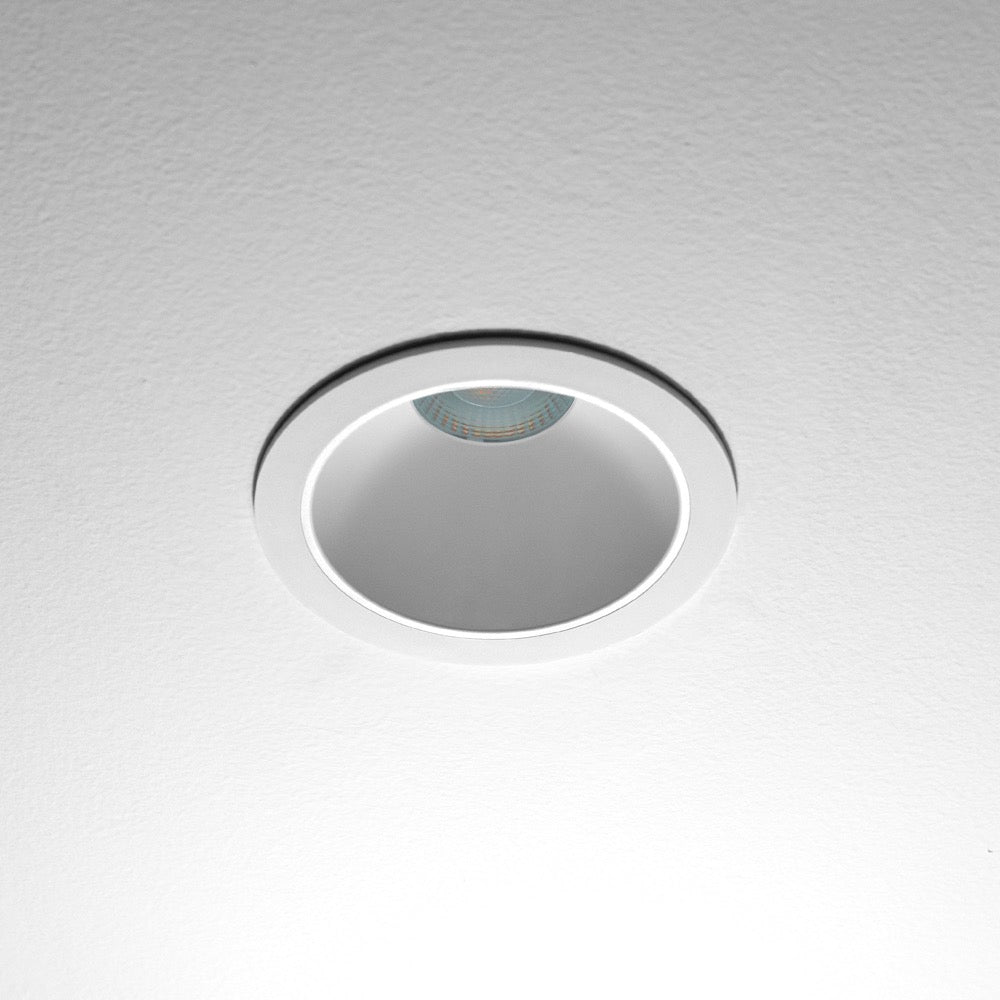

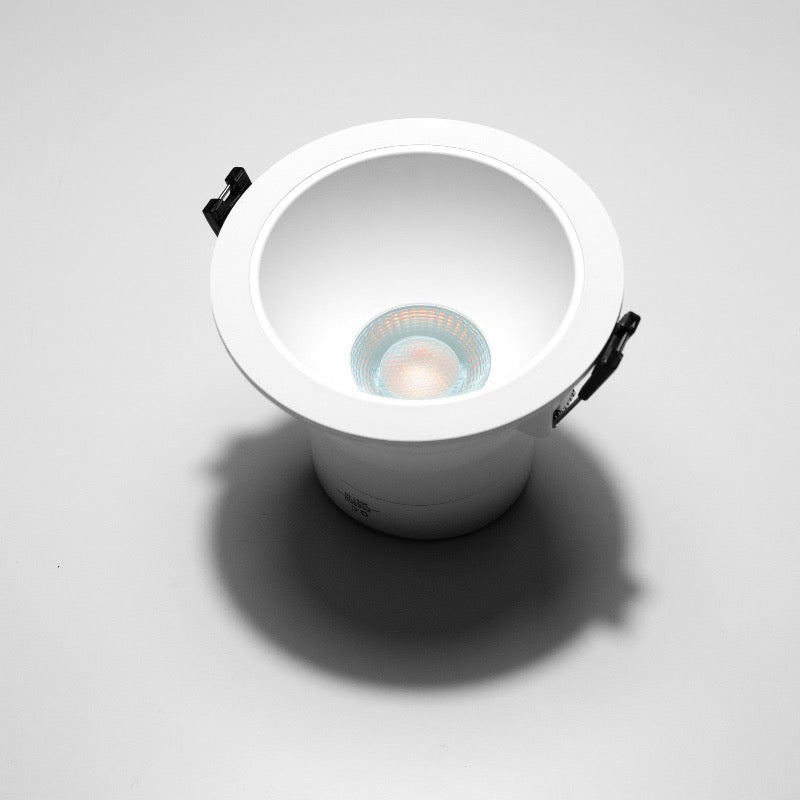

Ecolite 809 3CCT Ultra Low Glare
✔ 3-4 weeks delivered to your door.
Ideal for residential applications where design & value is vital the Ecolite 809 gives you a tri-colour switch, smooth dimming, low glare & compact design.
A great value downlight, that provides key glare removal and modern aesthetics to suit 2022 building projects.
A great value downlight, that provides key glare removal and modern aesthetics to suit 2022 building projects.
Can be used through the entire home, including bathrooms and outdoor areas, under eaves.
Only available from zlights australia
| SPECIFICATIONS | |
| Wattage | 8W |
| Dimmable | Yes (refer to driver specs below) |
| Beam angle |
60° |
| CutoutØ |
Ø90- 95mm |
| Power factor | >90 |
| IP factor | IP20 (IP54 for front face only) |
| IC rating | IC-4 |
| Input Voltage | 240V 50-60Hz |
| Warranty | 3 Year |
| Dimensions |
Ø106*H83mm |
| LED INFORMATION | |
| LED chip type | SMD |
| Lumens |
700lm @ 3000K |
| Efficacy | 80 lm/W*approx |
| CCT |
Tri-CCT (3000K/ 4000K/ 5700K) in one fitting |
| CRI rating |
80 |
| Lifetime | 30,000 Hours |
| MATERIALS & FINISHES | |
| Colour options | White RAL 9016 |
| Material | Housing & Heatsink Plastic + Aluminium Diffuser clear polycarbonate |
| DRIVER INFORMATION | |
| Driver Spec |
Constant Current: Dimmable with trailing edge dimmer.
|
| Compatible Dimmers | Clipsal – Universal: 32E450UDM, 31E2PUDM Clipsal – Trailing Edge: 32ELEDM-WE, 32E450TM HPM – Trailing Edge: CAT250T, CAT400T Diginet – LED Smart: MEDM |
| Driver type | Built in |
| Lead type | flex with plug |
